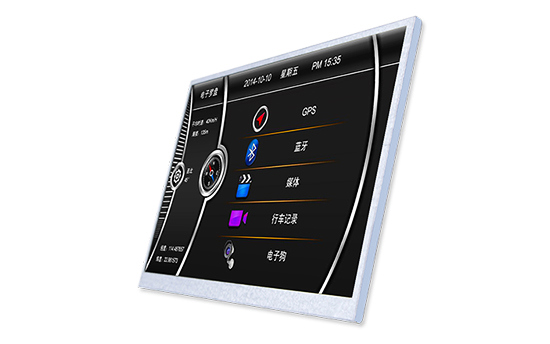

10.1" TFT Display (TFT-0160-CT)

This 10.1" TFT display has a resolution of 1024 x 600 px and a RGB interface for easy implementation.

It is ready fitted with a capacitive touchscreen with 5 point operation.

Optical enhancements can be added to this product and it can be assembled with a custom designed cover lens to provide a high quality user interface module ready to build into your equipment.

Display Features

  • Size: > 10"
  • Type: TN TFT
  • Feature: Integrated Touchscreen

Display Specs

Part NumberTFT-0160-CT
Display TypeTN TFT
Screen Size10.1"
Resolution1024 x 600
Aspect Ratio128:75
Viewing Angle12 o'clock
Brightness220 cd/M²
Backlight Half-Life20K Hours
Contrast Ratio500:1
Operating Temperature Range-20°C to 70°C
Dimensions (W x H x D)235 x 143 x 7 mm
Active Area (W x H)222.7 x 125.3 mm
