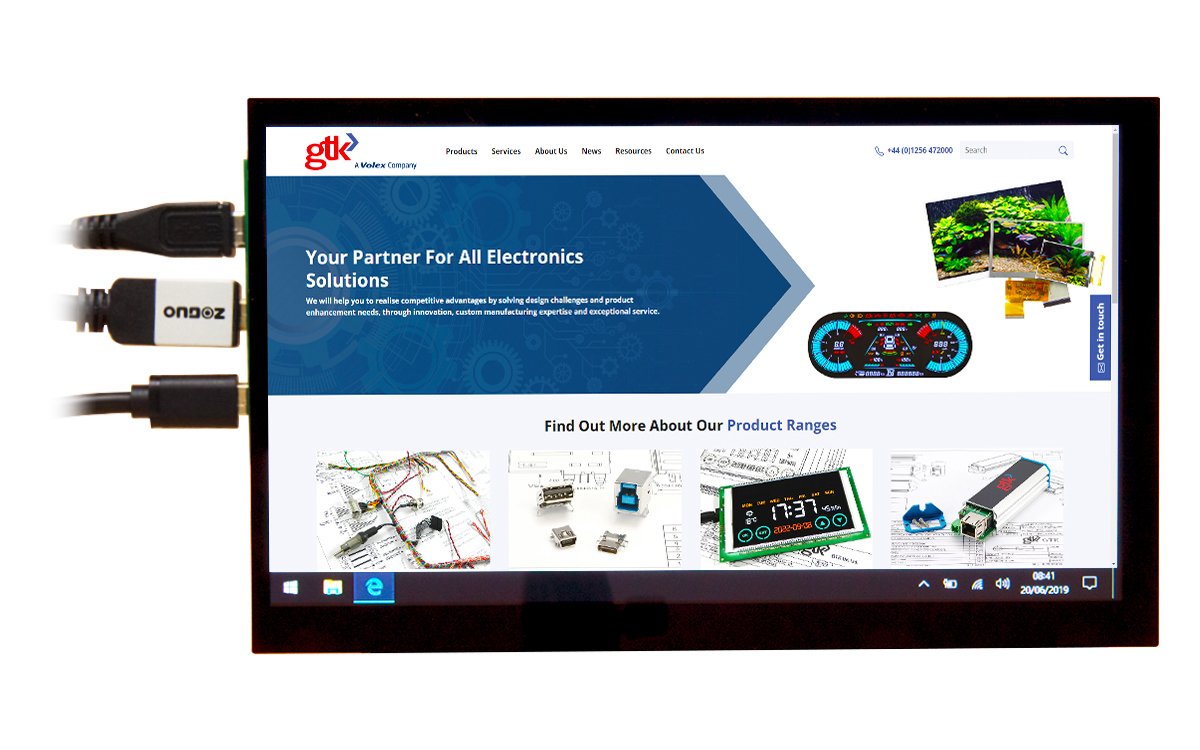

7" IPS TFT Display (IPS070A107R)

Our 7" integrated display solution features an IPS TFT panel and comes with its own HDMI board, meaning it doesn't need any additional setup to get it running.

It is powered by a single 5 V micro USB connection, while a second micro USB connector is used to drive the capacitive touchscreen, which supports multi-touch. It also features a 3.5 mm jack for audio-out.

The display itself has a free viewing angle and features a 16.7 million colour depth.

Display Features

  • Size: 5" - 9"
  • Type: IPS TFT
  • Feature: Integrated HDMI Board

Display Specs

Part NumberIPS070A107R
Display TypeIPS TFT
Screen Size7"
Resolution1024 x 600
Aspect Ratio128:75
Viewing AngleFree
Brightness250 cd/M²
Backlight Half-Life20K Hours
Contrast Ratio800:1
Operating Temperature Range-20°C to 70°C
Dimensions (W x H x D)164.9 x 100 x 3.5 mm
Active Area (W x H)154.2 x 85.9 mm
