5" IPS TFT (IPS050A102R)

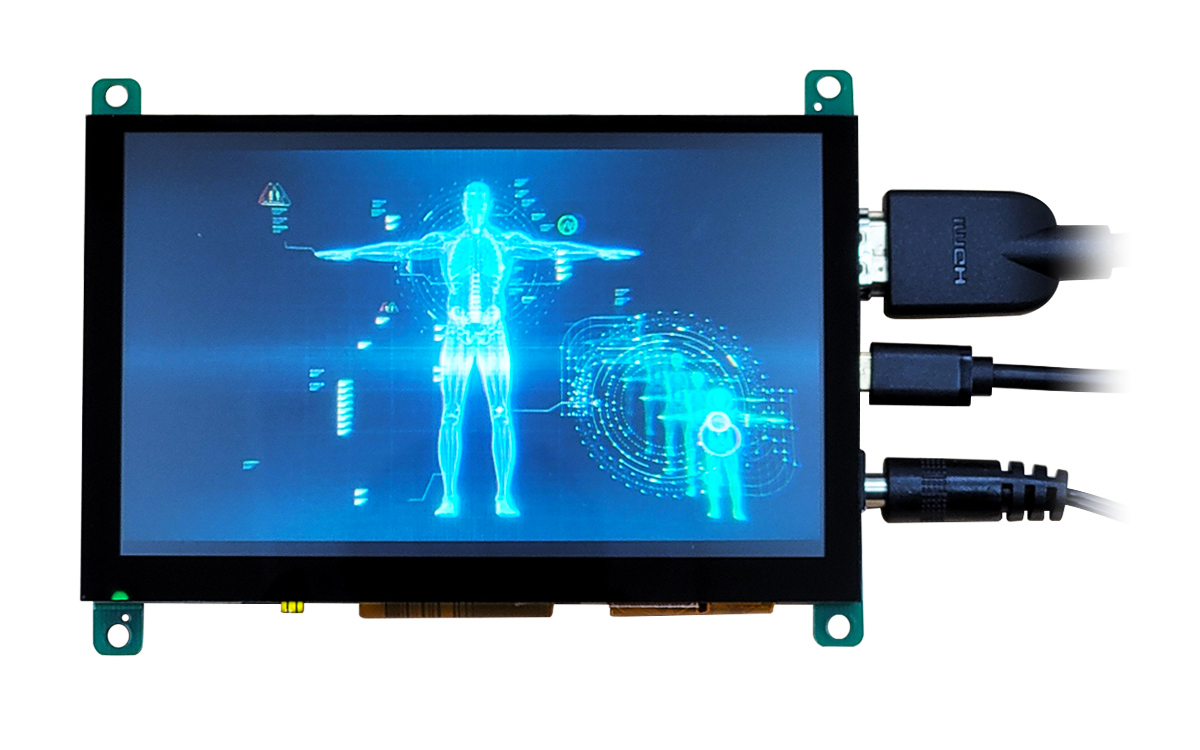

This 5" IPS panel is a fully integrated display solution that comes with its own HDMI board.

This means that it just needs a video input to get up and running, with no additional setup needed.

It draws its power from a 12 V DC jack while a micro-USB input is used to drive the capacitive touchscreen, which supports multi-touch.

The unit is supplied with a high-brightness backlight, giving it excellent sunlight readability, and the IPS display itself has an excellent contrast ratio, free viewing angles and features a 16.7 million colour depth.

Display Features

  • Size: 5" - 9"
  • Type: IPS TFT
  • Feature: High Brightness
  • Feature: Integrated HDMI Board

Display Specs

Part NumberIPS050A102R
Display TypeIPS TFT
Screen Size5"
Resolution800 x 480
ShapeStandard
Aspect Ratio5:3
Viewing AngleFree
Brightness1,000 cd/M²
Backlight Half-Life20K Hours
Contrast Ratio1,500:1
InterfaceHDMI
ConnectionZIF
Operating Temperature Range-20°C to 70°C
Dimensions (W x H x D)120.7 x 75.8 x 2.8 mm
Active Area (W x H)108 x 64.8 mm
