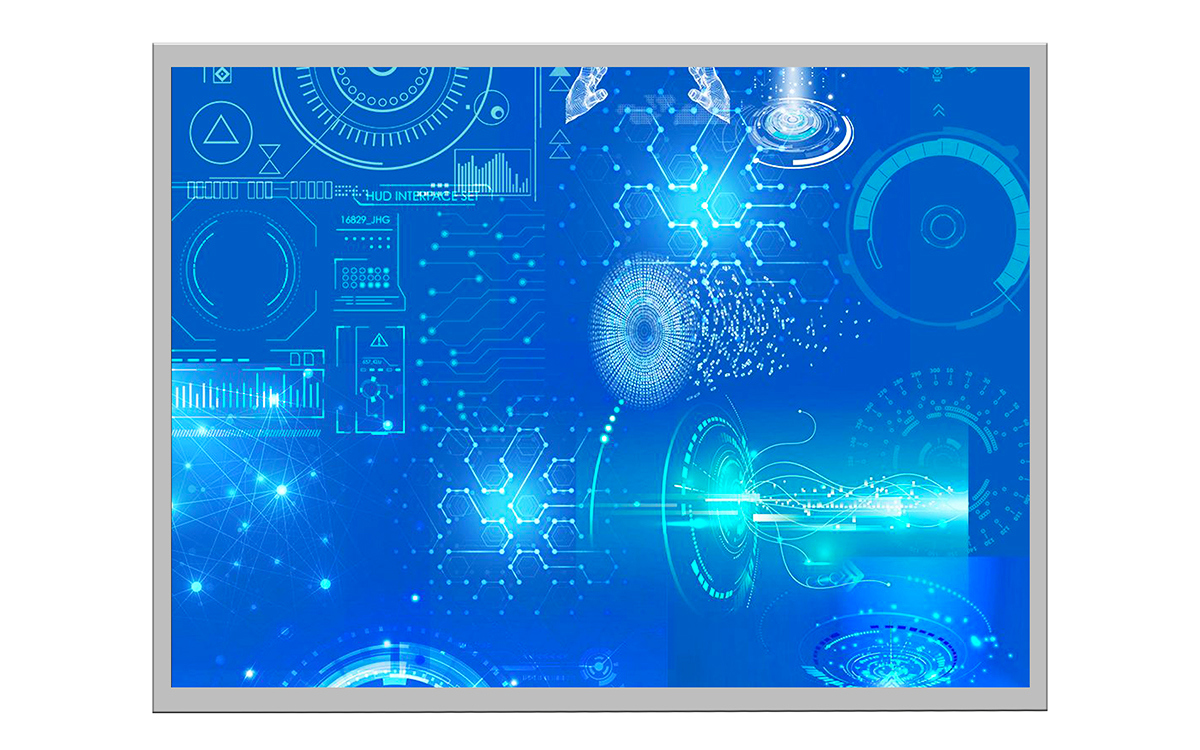

15' TFT Display (TFT150A101A)
Like our smaller industrial TFTs, this 15" display is polarised for a 12 o'clock viewing angle and has a basic LVDS interface.
However, it also comes with a higher resolution at 1024 x 768, giving it an increased pixel density over our 12.1in industrial display.
Display Features
- Size: > 10"
- Type: TN TFT
- Feature: Industrial Backlight
- Feature: Extended Temperature Range
Display Specs
| Part Number | TFT150A101A |
| Display Type | TN TFT |
| Screen Size | 15" |
| Resolution | 1024 x 768 |
| Shape | Standard |
| Aspect Ratio | 4:3 |
| Viewing Angle | 12 o'clock |
| Brightness | 450 cd/M² |
| Backlight Half-Life | 70K Hours |
| Contrast Ratio | 700:1 |
| Interface | LVDS |
| Connection | ZIF |
| Operating Temperature Range | -30°C to 80°C |
| Dimensions (W x H x D) | 328.5 x 225.5 x 14.2 mm |
| Active Area (W x H) | 304.1 x 228.1 mm |
