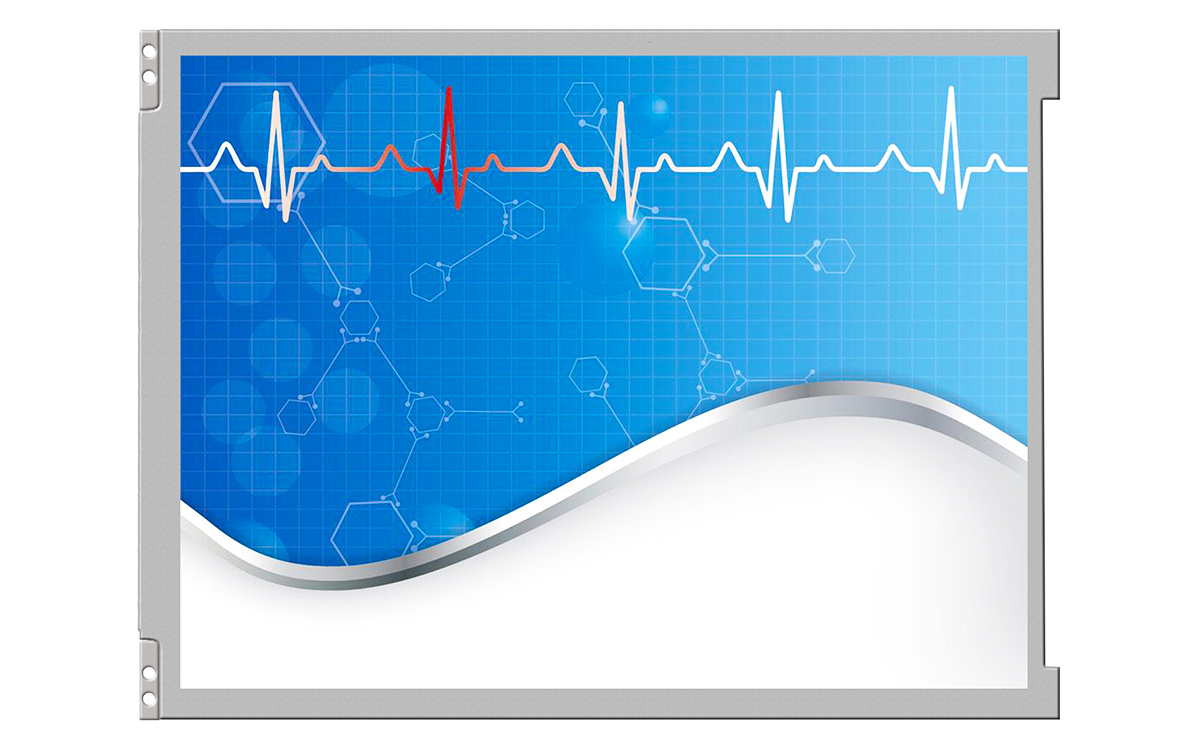

10.4' TFT Display (TFT104A101A)
Our 10.4" industrial TFT is polarised for a 12 o'clock viewing angle and has an extended backlight half-life of 30K hours.
It features an 800 x 600 resolution and an excellent contrast ratio.
Display Features
- Size: > 10"
- Type: TN TFT
- Feature: Industrial Backlight
Display Specs
| Part Number | TFT104A101A |
| Display Type | TN TFT |
| Screen Size | 10.4" |
| Resolution | 800 x 600 |
| Shape | Standard |
| Aspect Ratio | 4:3 |
| Viewing Angle | 12 o'clock |
| Brightness | 500 cd/M² |
| Backlight Half-Life | 30K Hours |
| Contrast Ratio | 800:1 |
| Interface | LVDS |
| Connection | ZIF |
| Operating Temperature Range | -20°C to 70°C |
| Dimensions (W x H x D) | 236 x 176.9 x 5.6 mm |
| Active Area (W x H) | 211.2 x 158.4 mm |
