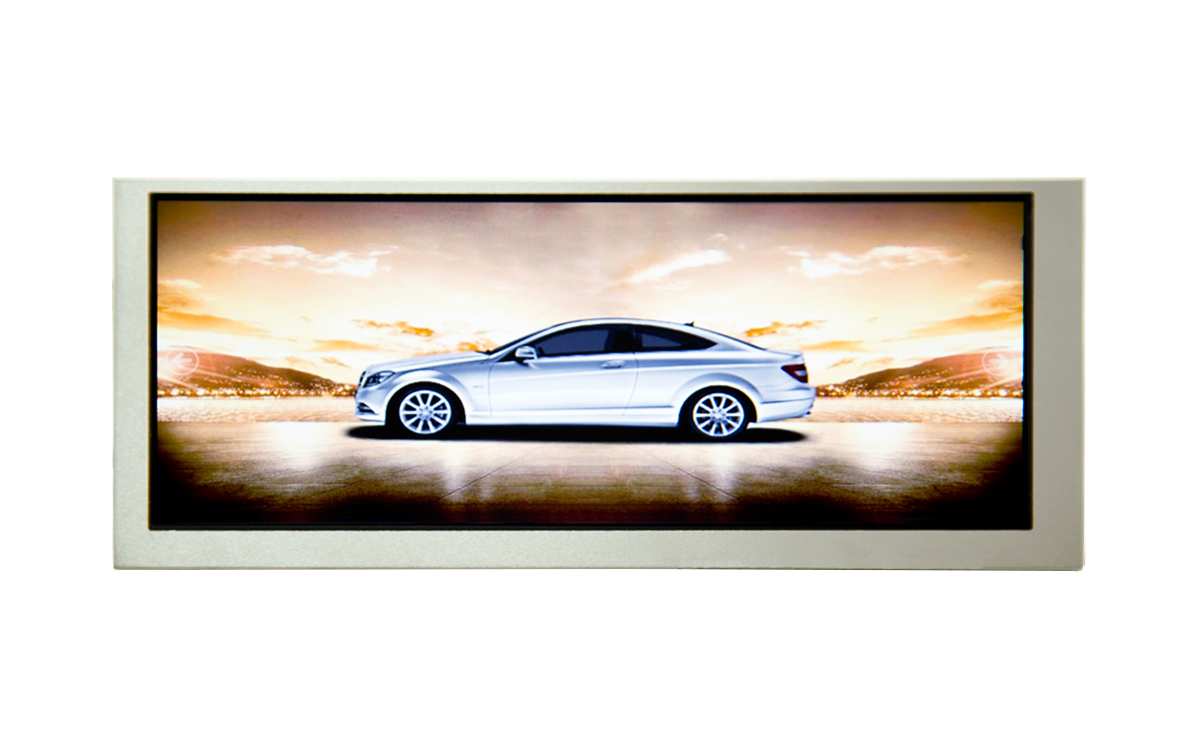

5.8" Letterbox TFT (TFT058B101A)
This 5.8" ultra-wide TFT features a 24-bit RGB interface and an aspect ratio of 2.5.
It is polarised for a 12 o'clock viewing angle.
Display Features
- Size: 5" - 9"
- Type: TN TFT
- Shape: Letterbox Display
- Feature: Extended Temperature Range
Display Specs
| Part Number | TFT058B101A |
| Display Type | TN TFT |
| Screen Size | 5.8" |
| Resolution | 800 x 320 |
| Shape | Letterbox / Bar |
| Aspect Ratio | 5:2 |
| Viewing Angle | 12 o'clock |
| Brightness | 500 cd/M² |
| Backlight Half-Life | 25K Hours |
| Contrast Ratio | 600:1 |
| Interface | RGB |
| Connection | ZIF |
| Operating Temperature Range | -30°C to 85°C |
| Dimensions (W x H x D) | 154.4 x 63.3 x 3.7 mm |
| Active Area (W x H) | 137.5 x 51.4 mm |
