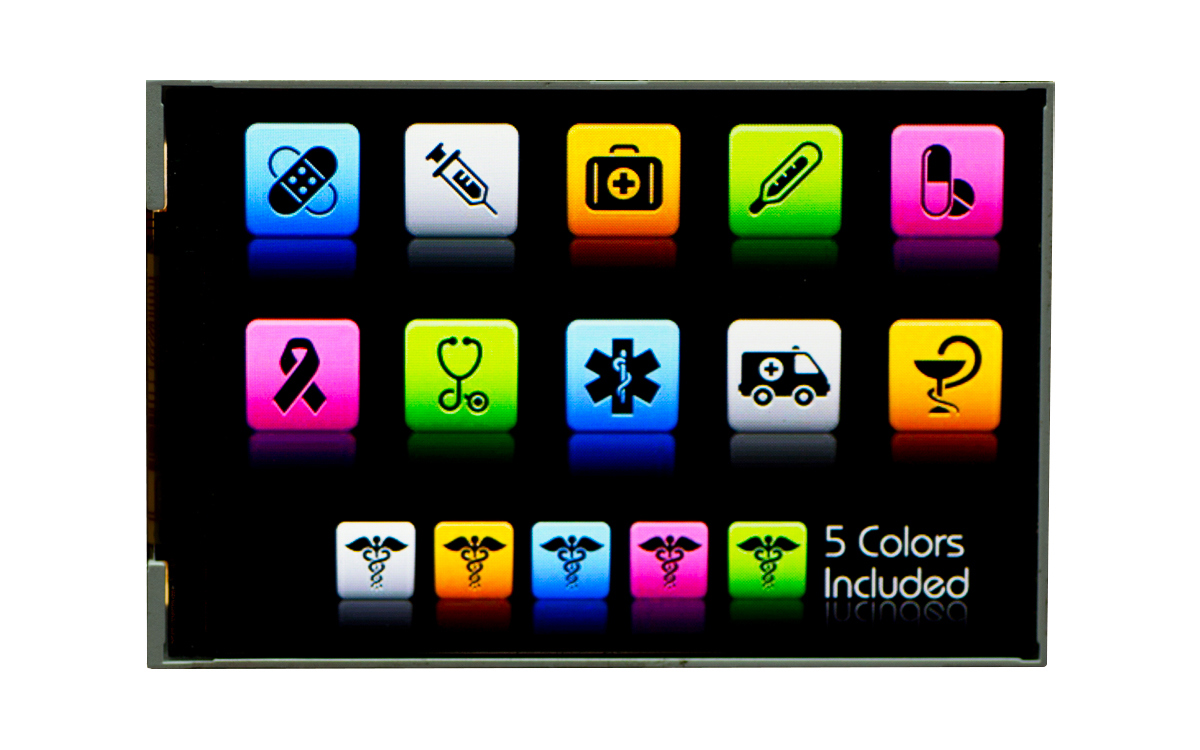

3.5" TFT Display (TFT035A101A)
This 3.5" TFT is an HVGA panel, featuring half the native resolution of normal VGA.
It is polarised for a 6 o'clock viewing angle making it ideal for high-mounted display applications.
Display Features
- Size: < 5"
- Type: TN TFT
- Feature: Extended Temperature Range
Display Specs
| Part Number | TFT035A101A |
| Display Type | TN TFT |
| Screen Size | 3.5" |
| Resolution | 320 x 480 |
| Shape | Standard |
| Aspect Ratio | 2:3 |
| Viewing Angle | 6 o'clock |
| Brightness | 220 cd/M² |
| Backlight Half-Life | 20K Hours |
| Contrast Ratio | 500:1 |
| Interface | MCU |
| Connection | ZIF |
| Operating Temperature Range | -20°C to 70°C |
| Dimensions (W x H x D) | 54.8 x 84.1 x 2.9 mm |
| Active Area (W x H) | 49 x 73.4 mm |
