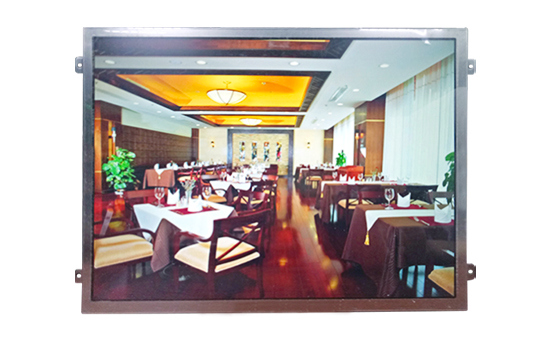

10.4" TFT Display (TFT-0161)
This 10.4" TFT display is fitted with an industrial backlight with a 50K hours half-life, making it ideal for always-on applications.
It also features an extended operating temperature range of -30°C to 85°C so can support a range of environments.
It utilises a high speed LVDS interface for great signal noise immunity and delivers an excellent contrast ratio for a standard TN panel.
It is available with enhancements such as a capacitive touchscreen or a built-in user interface with a custom designed cover lens.
Display Features
- Size: > 10"
- Type: TN TFT
- Feature: Industrial Backlight
- Feature: Extended Temperature Range
Display Specs
| Part Number | TFT-0161 |
| Display Type | TN TFT |
| Screen Size | 10.4" |
| Resolution | 800 x 600 |
| Shape | Standard |
| Aspect Ratio | 4:3 |
| Viewing Angle | Free |
| Brightness | 400 cd/M² |
| Backlight Half-Life | 50K Hours |
| Contrast Ratio | 700:1 |
| Interface | LVDS |
| Connection | ZIF |
| Operating Temperature Range | -30°C to 85°C |
| Dimensions (W x H x D) | 243 x 184 x 8.5 mm |
| Active Area (W x H) | 211.2 x 158.4 mm |
