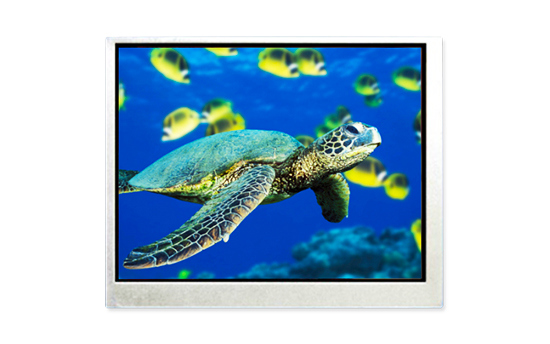

5.6" TFT Display (TFT-0116)

This 5.6" TFT display has a resolution of 640 x 480 px and RGB interface for easy implementation.

Enhancements are available for this display such as capacitive touchscreen and assembly with a custom cover lens into a complete user interface.

Display Features

  • Size: 5" - 9"
  • Type: TN TFT

Display Specs

Part NumberTFT-0116
Display TypeTN TFT
Screen Size5.6"
Resolution640 x 480
Aspect Ratio4:3
Viewing Angle6 o'clock
Brightness200 cd/M²
Backlight Half-Life20K Hours
Contrast Ratio500:1
Operating Temperature Range-20°C to 70°C
Dimensions (W x H x D)126.5 x 100 x 5.7 mm
Active Area (W x H)112.9 x 84.7 mm
