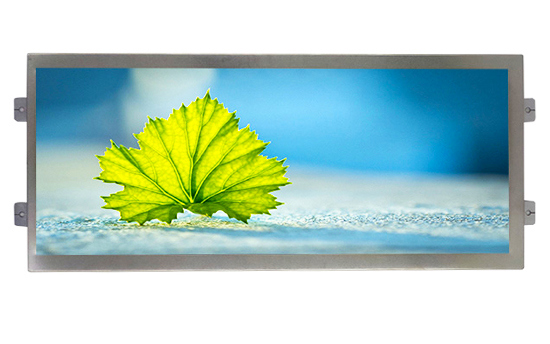

12.3" Letterbox IPS (TFTL-0109)
This 12.3" TFT display is the largest in our range of letterbox products and features a high resolution screen.
It has very high brightness, making it perfect for applications that need to operate in direct sunlight, and the industrial-level backlight has an extended half-life of 70K hours.
It also features an extended operating temperature range, going from -30°C to 85°C, making it suitable for markets including marine, military and automotive/transport.
Being an IPS panel, it delivers an excellent contrast ratio as well as fast response times and all-round viewing angles.
Display Features
- Size: > 10"
- Type: IPS TFT
- Shape: Letterbox Display
- Feature: High Brightness
- Feature: Industrial Backlight
- Feature: Extended Temperature Range
Display Specs
| Part Number | TFTL-0109 |
| Display Type | IPS TFT |
| Screen Size | 12.3" |
| Resolution | 1920 x 720 |
| Shape | Letterbox / Bar |
| Aspect Ratio | 8:3 |
| Viewing Angle | Free |
| Brightness | 1,000 cd/M² |
| Backlight Half-Life | 70K Hours |
| Contrast Ratio | 1,000:1 |
| Interface | LVDS |
| Connection | ZIF |
| Operating Temperature Range | -30°C to 85°C |
| Dimensions (W x H x D) | 312.4 x 134.9 x 7.3 mm |
| Active Area (W x H) | 292.3 x 109.6 mm |
