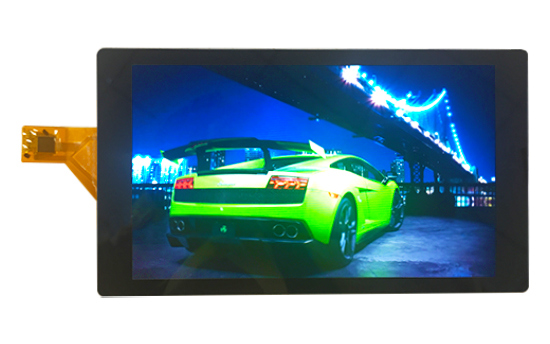

7" IPS TFT Display (IPS070B101B)
This 7" IPS display is part of our range of high performance TFTs.
Fitted with a touchscreen and with optical enhancement available, it can also be assembled with a cover lens to provide a complete user interface assembly.
With high resolution, true colour and high speed MIPI interface suitable for high speed video, this display will certainly leave an impression.
Display Features
- Size: 5" - 9"
- Type: IPS TFT
- Feature: Integrated Touchscreen
Display Specs
| Part Number | IPS070B101B |
| Display Type | IPS TFT |
| Screen Size | 7" |
| Resolution | 720 x 1280 |
| Shape | Standard |
| Aspect Ratio | 9:16 |
| Viewing Angle | Free |
| Brightness | 420 cd/M² |
| Contrast Ratio | 800:1 |
| Interface | MIPI |
| Connection | ZIF |
| Operating Temperature Range | -10°C to 50°C |
| Dimensions (W x H x D) | 102.4 x 180.4 x 4.2 mm |
| Active Area (W x H) | 89.2 x 152.3 mm |
