The MCX series provides a snap-fit connector for small spaces.

  • Ideal connector for wireless communications and GPS location devices.
  • 6 GHz maximum frequency
  • Snap fit coupling for reduced installation time
  • 50 Ω impedance
  • 30% space saving over SMB

Spec sheet Download our MCX spec sheet

Get in touch Get in touch to discuss your RF requirements

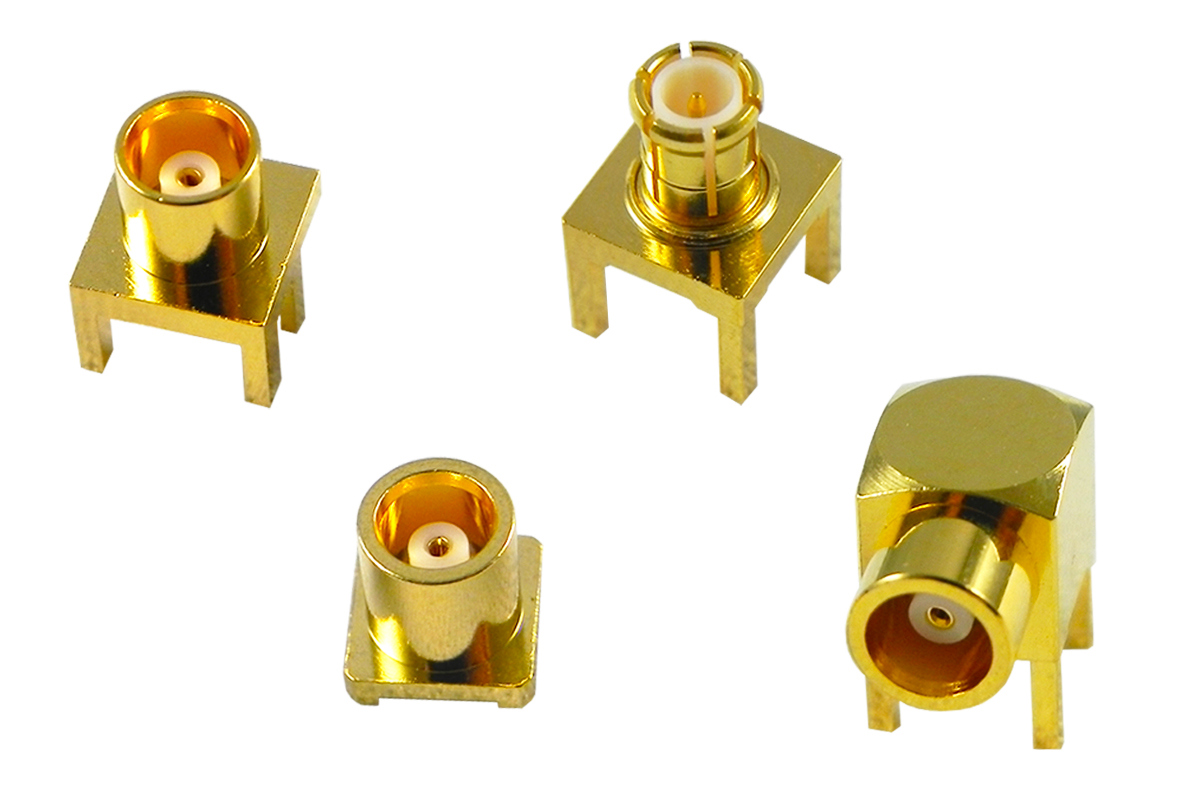

MCX RF connectors

Product Details

Part NumberConnector TypeImpedanceMounting StyleOrientationDrawingSamples
MCX-J1T-GG25-RJack50 ohmThrough holeHorizontal (R/A)MCX-J1T-GG25-Rrequest
MCX-J2T-GG25-RJack50 ohmThrough holeVerticalMCX-J2T-GG25-Rrequest
MCX-J2S-GG25-RJack50 ohmSMTVerticalMCX-J2S-GG25-Rrequest
MCX-JE1-GG25-RJack50 ohmThrough holeEnd-launchMCX-JE1-GG25-Rrequest
MCX-M2T-GG25-RPlug50 ohmThrough holeVerticalMCX-M2T-GG25-Rrequest
