2.92 mm (K series)

2.92 mm connectors are fully compatible with the SMA range but are suitable for higher frequencies due to a thicker outer conductor and air dielectric.

  • 40 GHz maximum frequency
  • Screw coupling
  • 50 W impedance
  • High precision, high frequency air dielectric version of SMA

Spec sheet Download our 2.92 mm spec sheet

Get in touch Looking for RF connectors? Get in touch

2.92 mm RF connectors

Product Details

Part NumberConnector TypeImpedanceMounting StyleDrawingSamples

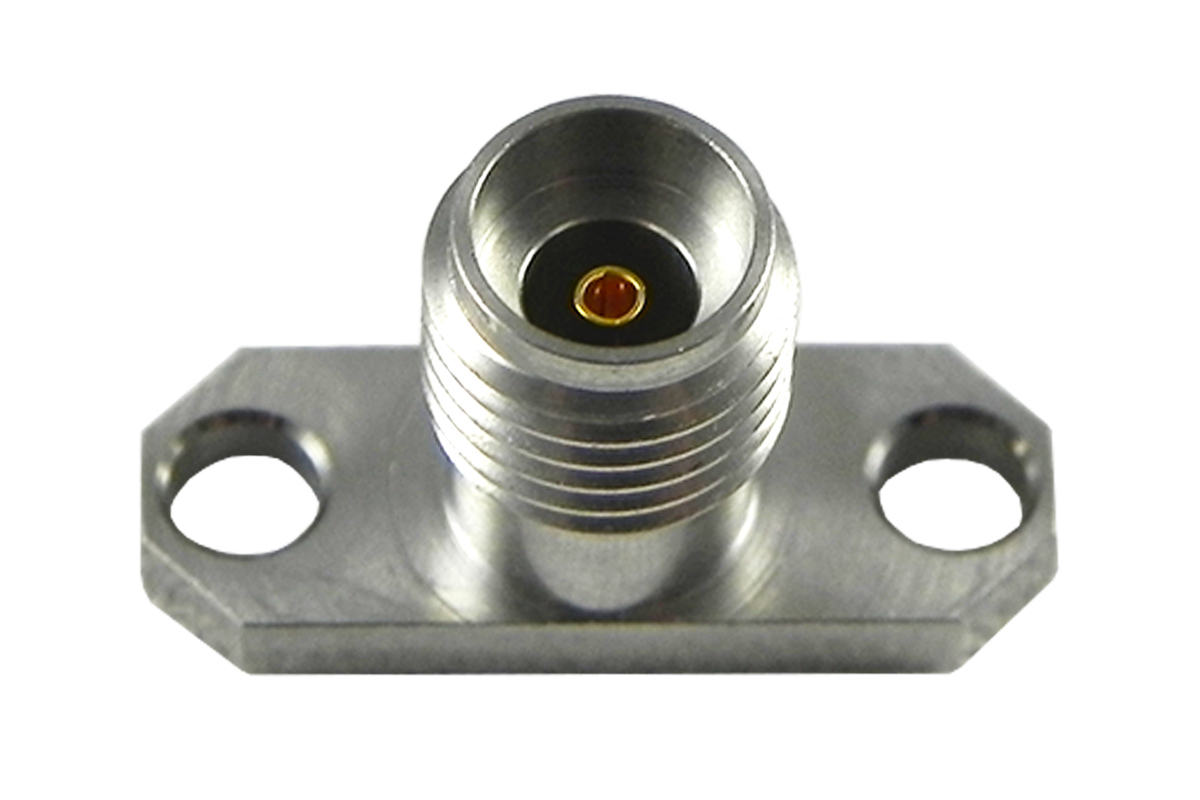

KS-JP2-PG25-RJack50 ohm2 hole flangeKS-JP2-PG25-Rrequest
KS-JP4A-PG25-RJack50 ohm4 hole flangeKS-JP4A-PG25-Rrequest
KS-JEL1-PG25-RJack50 ohmEnd launchKS-JEL1-PG25-Rrequest
PBSB00-021-002Glass bead  PBSB00-021-002request
