Similar in size to MMCX connectors and with a frequency range of DC to 40 Ghz.

  • Ideal for cable-end and board-to-board connections.
  • Plugs offer differing retention force options to connect PCBs via a bullet adaptor, which accommodates radial and axial misalignment.
  • Up to 40 GHz (semi-rigid cable with straight connector) or 12 GHz (in board-to-board applications) max frequency
  • Snap-fit / push-fit coupling for efficient installation
  • Three levels of retention on male connectors; full detent, limited detent and smooth bore
  • Suitable for board-to-board applications
  • 50 Ω impedance
  • SMP cable assemblies also available from GTK

Spec sheet Download our SMP spec sheet

Get in touch Talk to us about our RF connectors

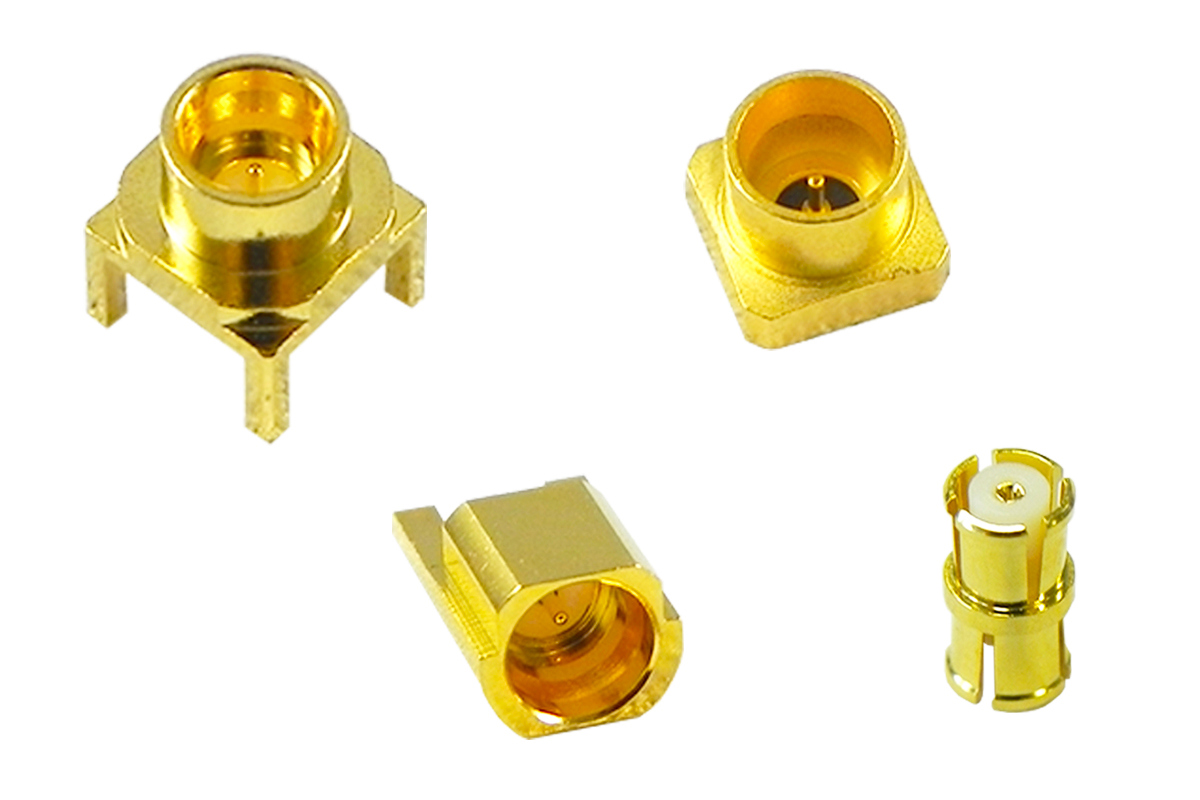

SMP RF connectors

Product Details

Part NumberConnector TypeImpedanceMounting StyleOrientationDrawingSamples
SMP-MD2T-GG25-RPlug50 ohmThrough holeVerticalSMP-MD2T-GG25-Rrequest
SMP-MP2S-GG25-RPlug50 ohmSMTVerticalSMP-MP2S-GG25-Rrequest
SMP-MDES-GG25-RPlug50 ohmSMTEnd-launchSMP-MDES-GG25-Rrequest
SMP-AFF1-GG25-RIn-series adaptor50 ohmN/aVerticalSMP-AFF1-GG25-Rrequest
