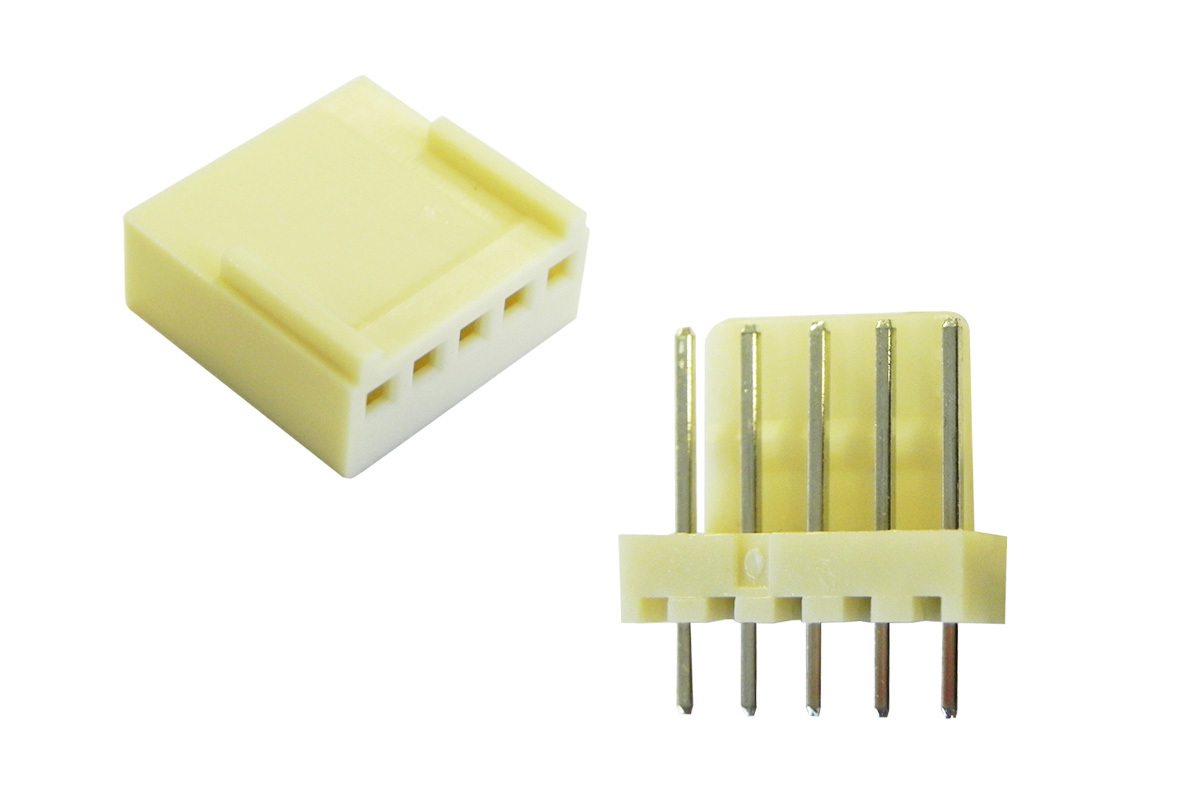

2.54 mm Wire-to-Board
Industry standard 2.54mm pitch friction lock headers and mating cable connectors.
- 2-15 position
- 3 A current rating
- Polarised to prevent mis-mating
- Friction lock ramps reduce risk of accidental disconnection
- Selective pin loading available on request
- Fully interchangeable and compatible with industry standard equivalents
- Replace 'xx' with number of contacts
Get in touch today to discuss your wire-to-board requirements
Product Details
| Part Number | Connector Type | No. of Contacts | No. of Rows | Mounting Style | Orientation | Contact Plating | Wire Size | Drawing | Samples |
|---|---|---|---|---|---|---|---|---|---|
| 2500-xx-ST-R | Header | 2-15 | Single | Through hole | Vertical | Tin | 2500-xx-ST-R | request | |
| 2500-xx-RT-R | Header | 2-15 | Single | Through hole | Horizontal (R/A) | Tin | 2500-xx-RT-R | request | |
| 2500-xxRTR-R | Header | 2-15 | Single | Through hole | Reverse R/A | Tin | 2500-xxRTR-R | request | |
| 2510-xx-R | Crimp housing | 2-15 | Single | Crimp | 2510-xx-R | request | |||
| 2510T-R | Crimp contact | Crimp | Tin | 22-28 AWG | 2510T-R | request |
