1.25 mm Standard Wire-To-Board

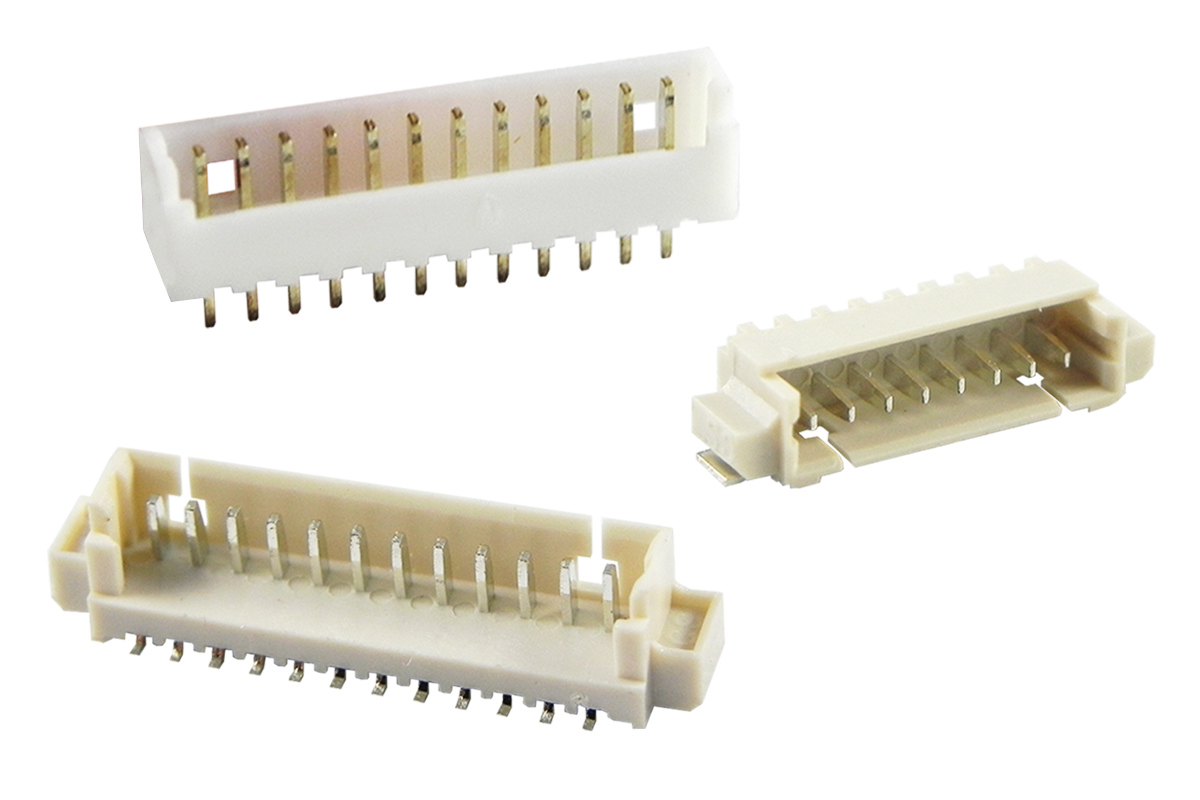

A highly versatile range of 1.25 mm pitch connectors, which includes through hole and SMT headers in either vertical or right-angle orientations.

Commonly used as an inverter connector on displays, it is also widely used as a space saving disconnectable wire-to-board solution across many industry applications.

  • 2-15 position
  • 1 A current rating
  • Polarised to prevent mis-mating
  • Friction lock ramps reduce risk of accidental disconnection
  • 94V-0 housings
  • Fully interchangeable and compatible with industry standard equivalents
  • Replace 'xx' with number of contacts
  • Custom discrete wire cable assemblies available in all volumes

Get in touch Get in touch today to discuss your wire-to-board requirements

1.25 mm wire-to-board connectors

Product Details

Part NumberConnector TypeNo. of ContactsMounting StyleNo. of RowsContact PlatingOrientationWire SizeDrawingSamples
WTBB-xxS-SMH2T-RHeader2-15SMTSingleTinVertical WTBB-xxS-SMH2T-Rrequest
WTBB-xxS-SMH1T-RHeader2-15SMTSingleTinHorizontal (R/A) WTBB-xxS-SMH1T-Rrequest
WTBB-xxS-TH2T-RHeader2-15Through holeSingleTinVertical WTBB-xxS-TH2T-Rrequest
WTBB-xxS-TH1T-RHeader2-15Through holeSingleTinHorizontal (R/A) WTBB-xxS-TH1T-Rrequest
WTBB-xxS-CF3T-RCrimp housing2-15CrimpSingle   WTBB-xxS-CF3T-Rrequest
WTBB-CR-FTR-RCrimp contact Crimp Tin 28-32 AWGWTBB-CR-FTR-Rrequest
