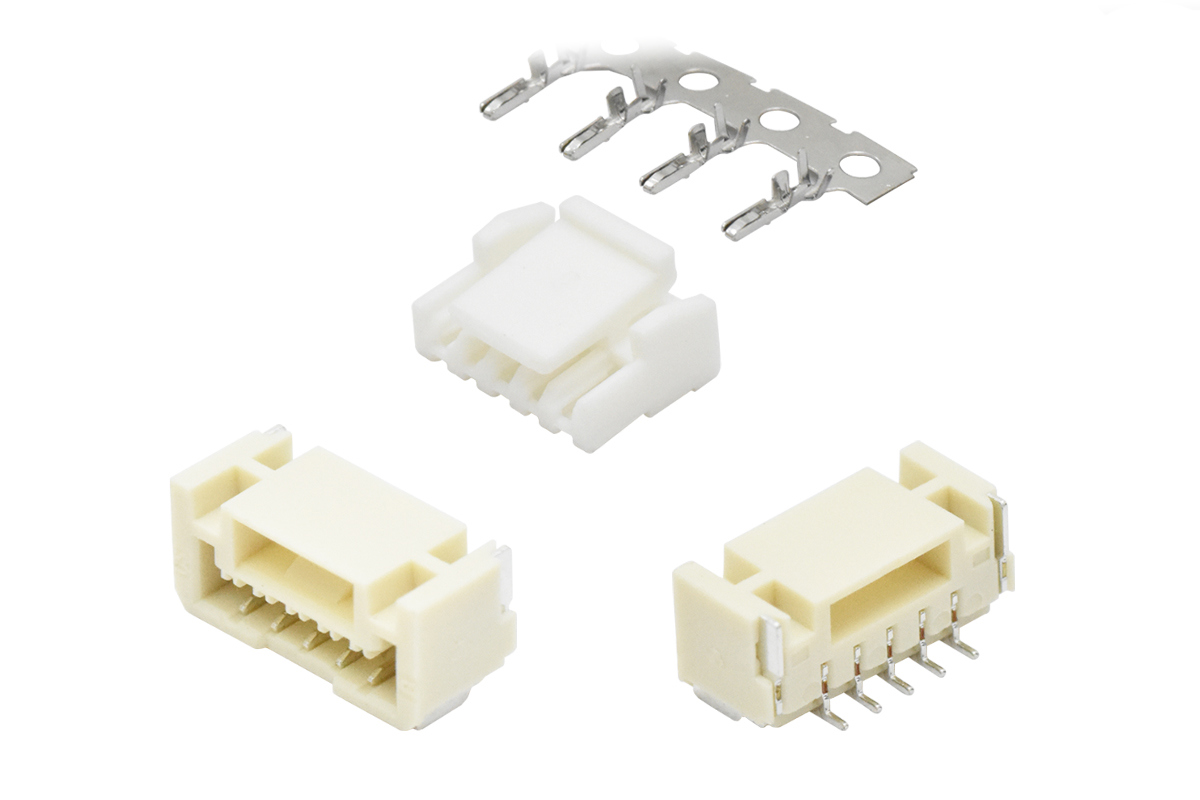

1.25 mm Latched Wire-To-Board

A fully latched 1.25 mm wire to board connection, ideal for high vibration applications where space is at a premium.

  • Positive latch prevents unwanted disconnect
  • Mated height of 4.25 mm with horizontal header
  • 2-15 positions
  • 1.0 A current rating
  • UL 94V-0 rated housings
  • Replace 'xx' with number of contacts
  • Custom discrete wire cable assemblies available in all volumes

Get in touch Get in touch today to discuss your wire-to-board requirements

1.25 mm latched wire to board connectors

Product Details

Part NumberConnector TypeNo. of ContactsMounting StyleOrientationContact PlatingWire SizeDrawingSamples
WB1J-xxS-SMH1T-RHeader02-15SMTHorizontal (R/A)Tin WB1J-xxS-SMH1T-Rrequest
WB1J-xxS-SMH2T-RHeader02-15SMTVerticalTin WB1J-xxS-SMH2T-Rrequest
WB1J-xxS-CF3K-RCrimp house02-15Crimp   WB1J-xxS-CF3K-Rrequest
WB1J-CR-FTRCrimp contact Crimp Tin26-30 AWGWB1J-CR-FTRrequest
