1.0 mm Wire-to-Board

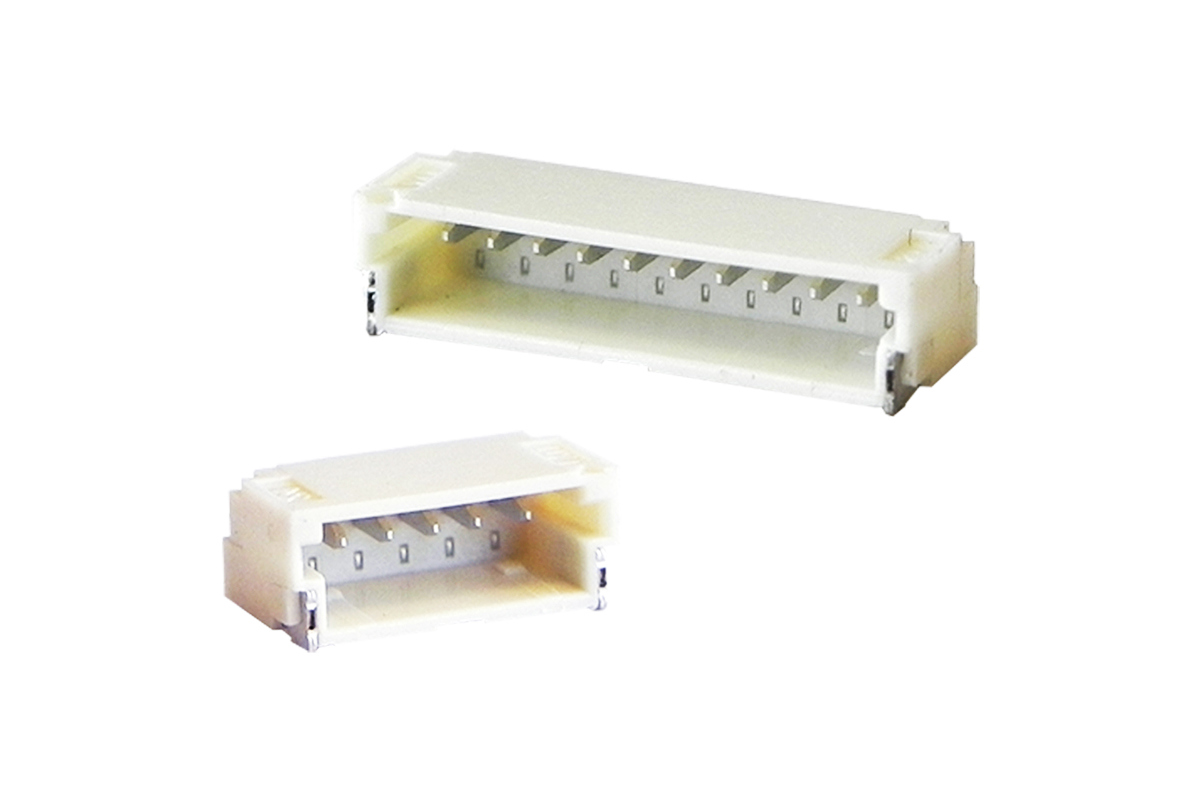

A compact, low profile 1.0 mm pitch connector series, this range is ideal for applications where space is limited.

  • 2-20 position
  • 1 A current rating
  • Polarised to prevent mis-mating
  • Max 6.4 mm height when mated
  • 94V-0 housings
  • Supplied in tape & reel packaging
  • Replace 'xx' with number of contacts

Get in touch Get in touch today to discuss your wire-to-board requirements

1.0 mm wire-to-board connectors

Product Details

Part NumberConnector TypeNo. of ContactsNo. of RowsMounting StyleOrientationContact PlatingWire SizeDrawingSamples
WTBI-xxS-SMH2T-RHeader2-20SingleSMTVerticalTin WTBI-xxS-SMH2T-Rrequest
WTBI-xxS-SMH1T-RHeader2-20SingleSMTHorizontal (R/A)Tin WTBI-xxS-SMH1T-Rrequest
WTBI-xxS-CF3-RCrimp housing2-20SingleCrimp Tin WTBI-xxS-CF3-Rrequest
WTBI-CRFTR-RCrimp contact  Crimp Tin28-32 AWGWTBI-CRFTR-Rrequest
