MMCX connectors are designed for applications where the smallest dimensions need to be attained, and can be used from DC to 6 GHz.

  • 6 GHz maximum frequency
  • Snap fit coupling for reduced installation time
  • 50 Ω impedance
  • Design allows for 360° rotation of mating cable assembly

Spec sheet Download our MMCX spec sheet

Get in touch Looking for RF connectors? Get in touch

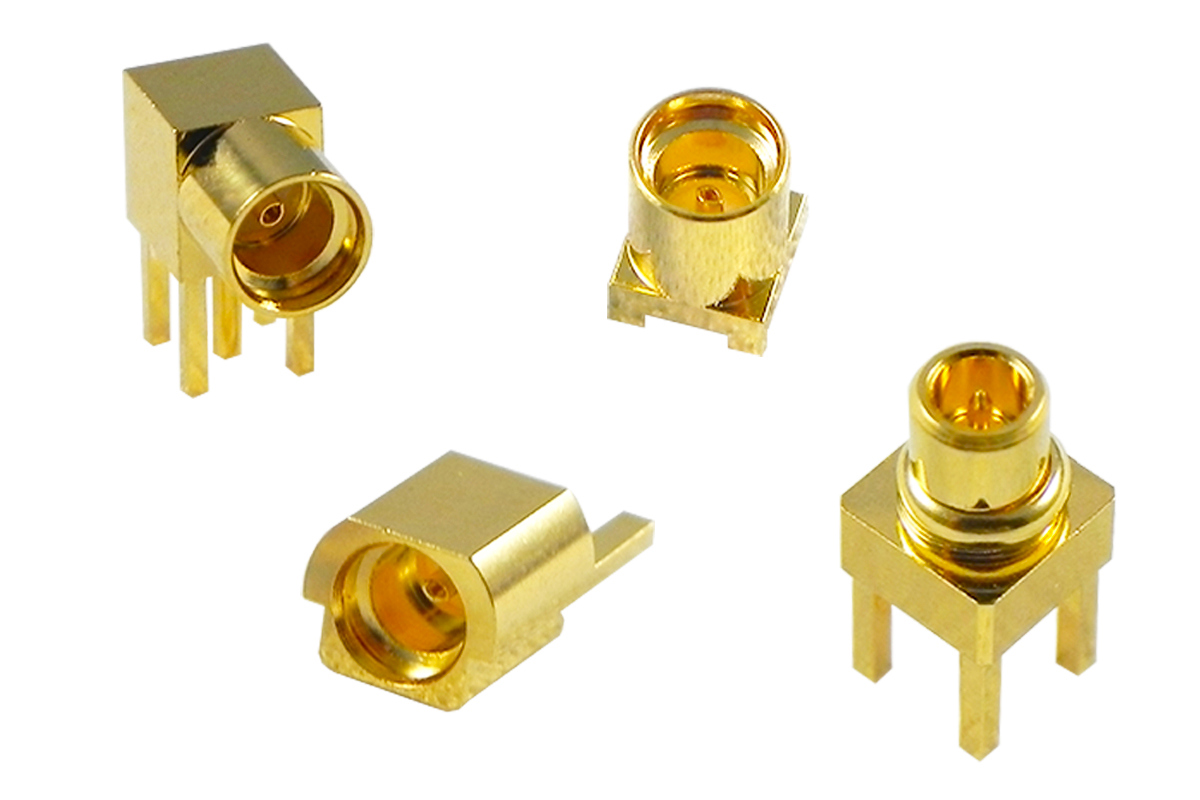

MMCX RF connectors

Product Details

Part NumberConnector TypeImpedanceMounting StyleOrientationDrawingSamples
MMCX-J1T-GG25-RJack50 ohmThrough holeHorizontal (R/A)MMCX-J1T-GG25-Rrequest
MMCX-J2T-GG25-RJack50 ohmThrough holeVerticalMMCX-J2T-GG25-Rrequest
MMCX-J2S-GG25-RJack50 ohmSMTVerticalMMCX-J2S-GG25-Rrequest
MMCX-JES-GG25-RJack50 ohmSMTEnd-launchMMCX-JES-GG25-Rrequest
MMCX-M2T-GG25-RPlug50 ohmThrough holeVerticalMMCX-M2T-GG25-Rrequest
