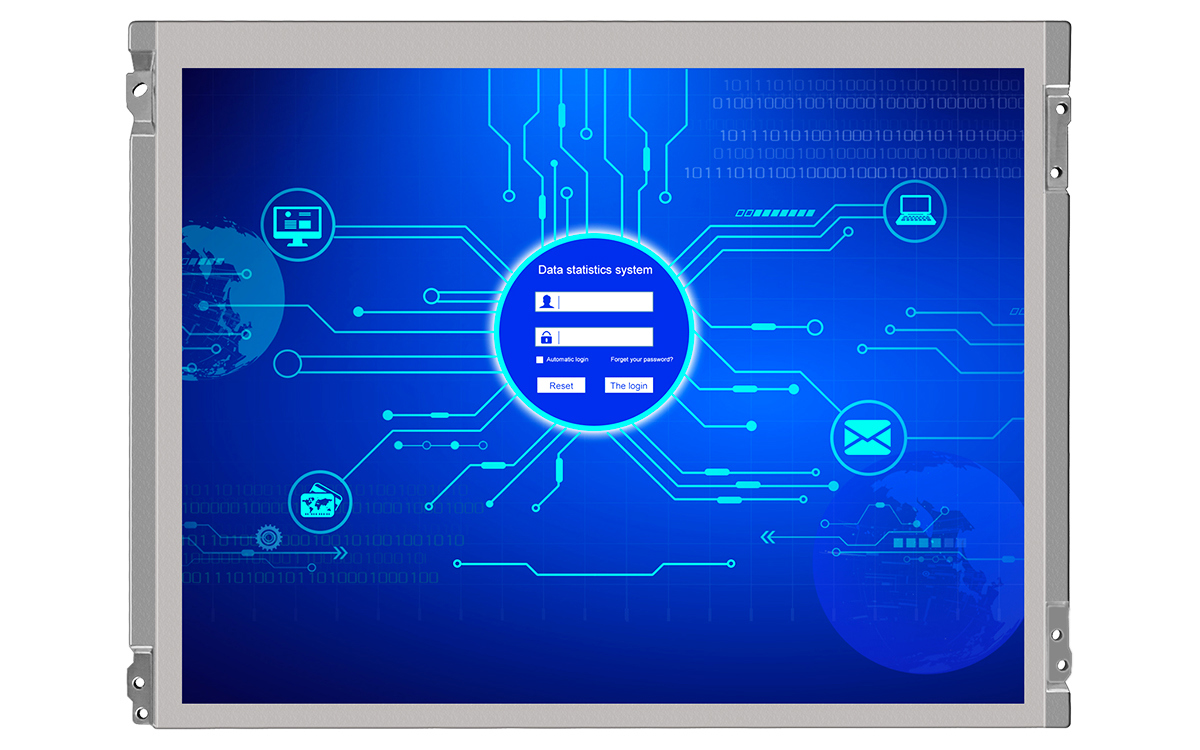

12.1' TFT Display (TFT121A101A)

Our 12.1" industrial TFT is polarised for a 12 o'clock viewing angle has an extended backlight half-life of 50K hours.

It is ideal for applications that need a slightly larger display but don't require the high resolution and viewing angles that come with IPS displays.

Display Features

  • Size: > 10"
  • Type: TN TFT
  • Feature: Industrial Backlight

Display Specs

Part NumberTFT121A101A
Display TypeTN TFT
Screen Size12.1"
Resolution800 x 600
Aspect Ratio4:3
Viewing Angle12 o'clock
Brightness450 cd/M²
Backlight Half-Life50K Hours
Contrast Ratio800:1
Operating Temperature Range-20°C to 70°C
Dimensions (W x H x D)279 x 209 x 9 mm
Active Area (W x H)246 x 184.5 mm
