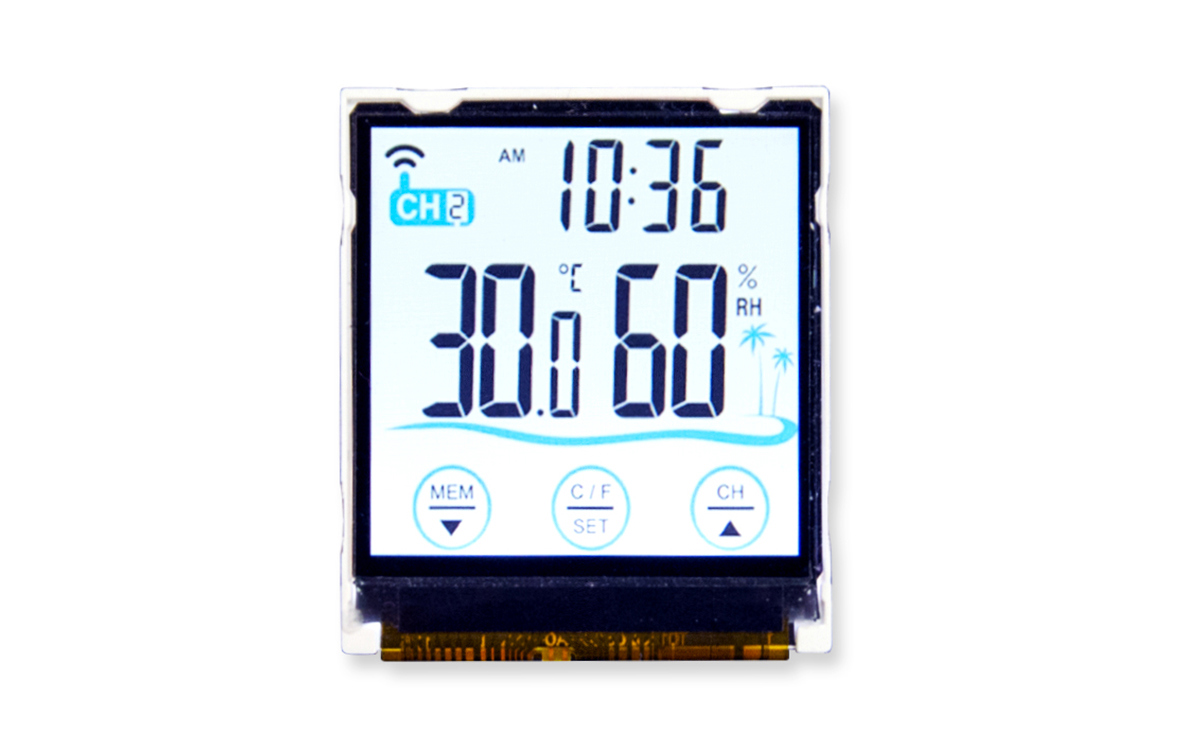

1.5" Square IPS TFT (IPS015B101A)
Our smallest 1:1 display, this 1.5" IPS TFT comes with a 320 x 320 resolution, which is excellent for its size.
It has two interface options and can be driven by either at a 16-bit RGB interface and 3-wire SPI interface.
Like all IPS displays, it benefits from a high contrast ratio and all-round viewing angles.
It can be fitted with a touchscreen or custom cover lens, making it ideal for smart home-type applications.
Display Features
- Size: < 5"
- Type: IPS TFT
- Shape: Square Display
Display Specs
| Part Number | IPS015B101A |
| Display Type | IPS TFT |
| Screen Size | 1.5" |
| Resolution | 320 x 320 |
| Shape | Square |
| Aspect Ratio | 1:1 |
| Viewing Angle | Free |
| Brightness | 430 cd/M² |
| Backlight Half-Life | 25K Hours |
| Contrast Ratio | 900:1 |
| Interface | RGB, SPI |
| Connection | ZIF |
| Operating Temperature Range | -20°C to 70°C |
| Dimensions (W x H x D) | 31.9 x 36.9 x 2.7 mm |
