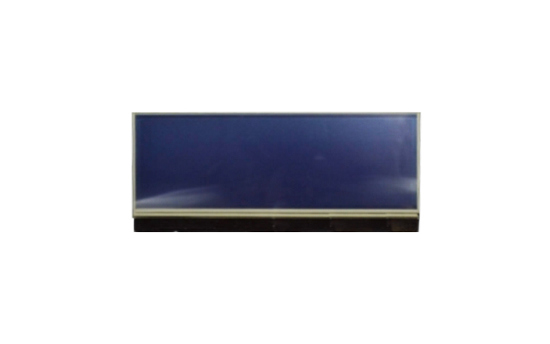

240 x 64 Chip-on-Glass Display (COG24064B101A)
This 240 x 64 FSTN display features a 6 o'clock viewing angle, a white LED backlight and a 1/64 duty cycle.
Display Features
- Type: FSTN COG
- Display: Positive
- Mode: Transflective
Display Specs
| Part Number | COG24064B101A |
| Screen Size | 5.4" |
| Resolution | 240 x 64 |
| Mode | Transflective / Positive |
| Backlight Colour | White |
| Aspect Ratio | 15:4 |
| Viewing Angle | 6 o'clock |
| Connection | ZIF |
| Operating Temperature Range | -10°C to 60°C |
| Dimensions (W x H x D) | 126.2 x 55.1 x 5.8 mm |
| View Area Size (W x H) | 111 x 37 mm |
