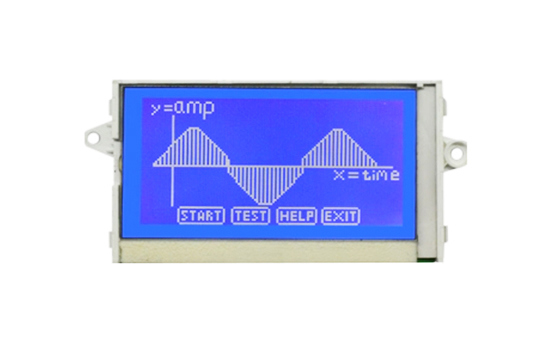

128 x 64 Chip-on-Glass Display (COG12864B101A)
This FSTN display is the smaller of our 128 x 64 displays and features a 6 o'clock viewing angle, a white LED backlight and a 1/65 duty cycle.
Display Features
- Type: FSTN COG
- Display: Positive
- Mode: Transflective
Display Specs
| Part Number | COG12864B101A |
| Screen Size | 2.8" |
| Resolution | 128 x 64 |
| Mode | Transflective / Positive |
| Backlight Colour | White |
| Aspect Ratio | 2:1 |
| Viewing Angle | 6 o'clock |
| Connection | Pins |
| Operating Temperature Range | -20°C to 70°C |
| Dimensions (W x H x D) | 58.2 x 41.7 x 5.7 mm |
| View Area Size (W x H) | 50 x 25 mm |
