SMPM (Mini SMP)
SMPM connectors are approximately 20% smaller than the SMP range, with a frequency range of DC to 65 Ghz.
- Male connectors are offered with smooth bore or full detent for differing retention levels
- PCBs can be connected via a bullet adaptor which accommodates radial and axial misalignment
- Up to 65 GHz max frequency
- Snap-fit / push-fit coupling for efficient installation
- Suitable for cable and board-to-board applications

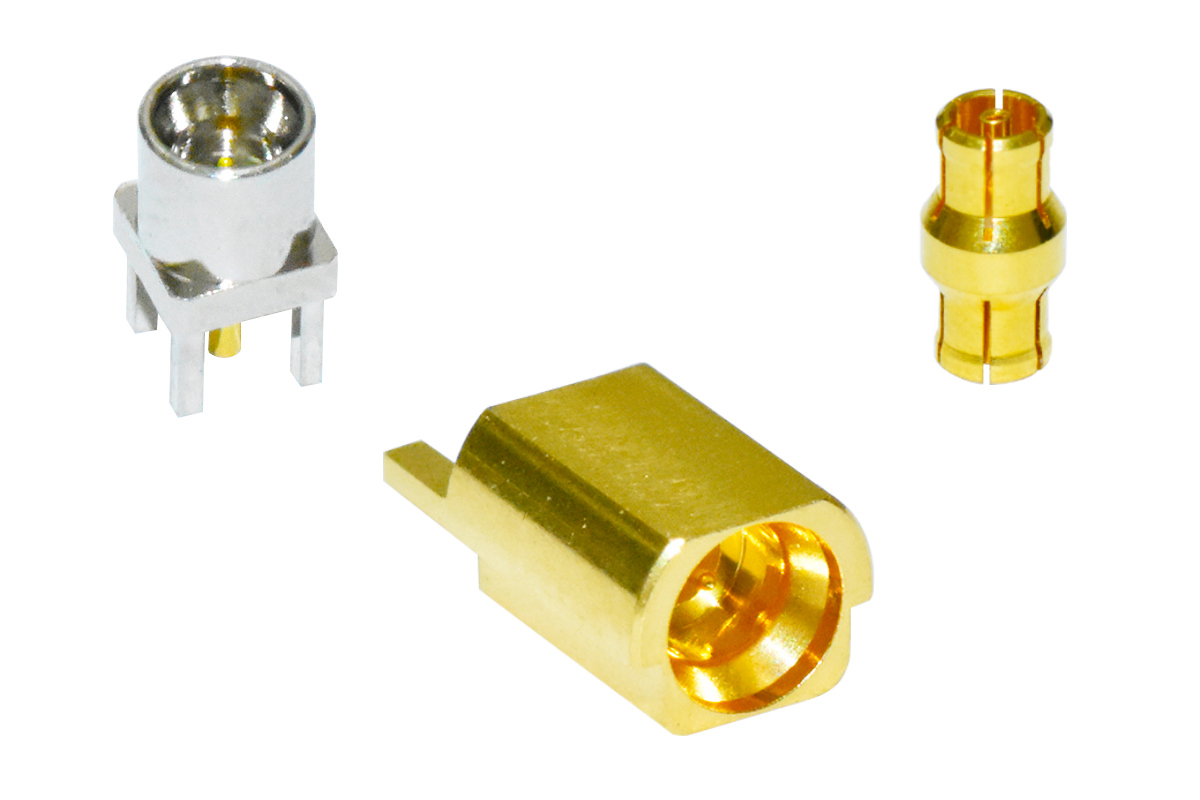

![SMPM (mini SMP) RF connectors](https://cdn.cms42.com/gtk2022/product-categories/connectors/rf/_webp/rf-micro-smpm/original.webp)
Product Details
Part Number | Connector Type | Mounting Style | Orientation | Drawing | Samples |
---|---|---|---|---|---|
SMPM-MLES-GG15-R | Plug | SMT | End-launch | SMPM-MLES-GG15-R | request |
SMPM-ML2T-NG15-R | Plug | Through hole | Vertical | SMPM-ML2T-NG15-R | request |
SMPM-J2T-GG15-R | Jack | Through hole | Vertical | SMPM-J2T-GG15-R | request |
SMPM-AFF2-GG15-R | Bullet adaptor | N/a | In-line | SMPM-AFF2-GG15-R | request |
