The SMB series provides the same impedance as SMC, but its snap-fit coupling allows for a faster connect/disconnect, reducing installation time.

  • 4 GHz maximum frequency
  • Snap fit coupling
  • 50 Ω impedance

Spec sheet Download our SMB spec sheet

Get in touch Get in touch to discuss your RF requirements

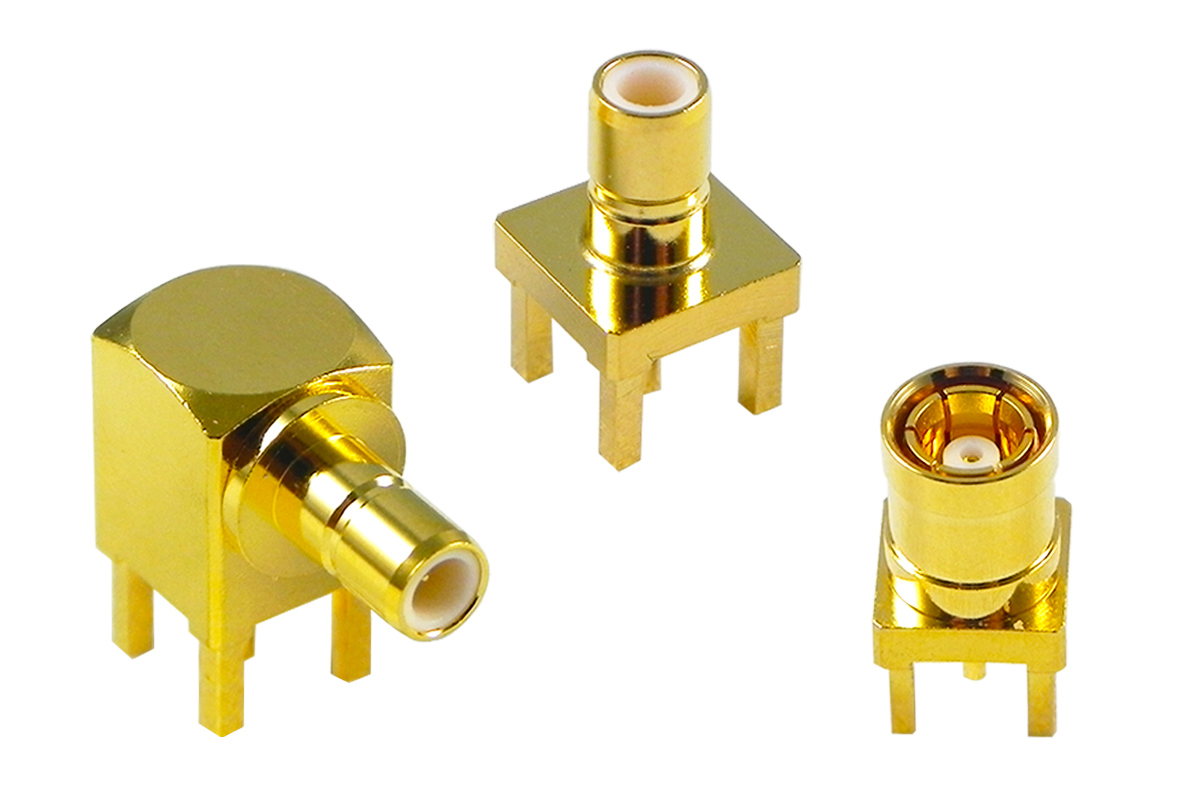

SMB RF connectors

Product Details

Part NumberConnector TypeImpedanceMounting StyleOrientationDrawingSamples
SMB-J1T-GG25-RJack50 ohmThrough holeHorizontal (R/A)SMB-J1T-GG25-Rrequest
SMB-J2T-GG25-RJack50 ohmThrough holeVerticalSMB-J2T-GG25-Rrequest
SMB-JE1-GG25-RJack50 ohmThrough holeEnd-launchSMB-JE1-GG25-Rrequest
SMB-M2T-GG25-RPlug50 ohmThrough holeVerticalSMB-M2T-GG25-Rrequest
