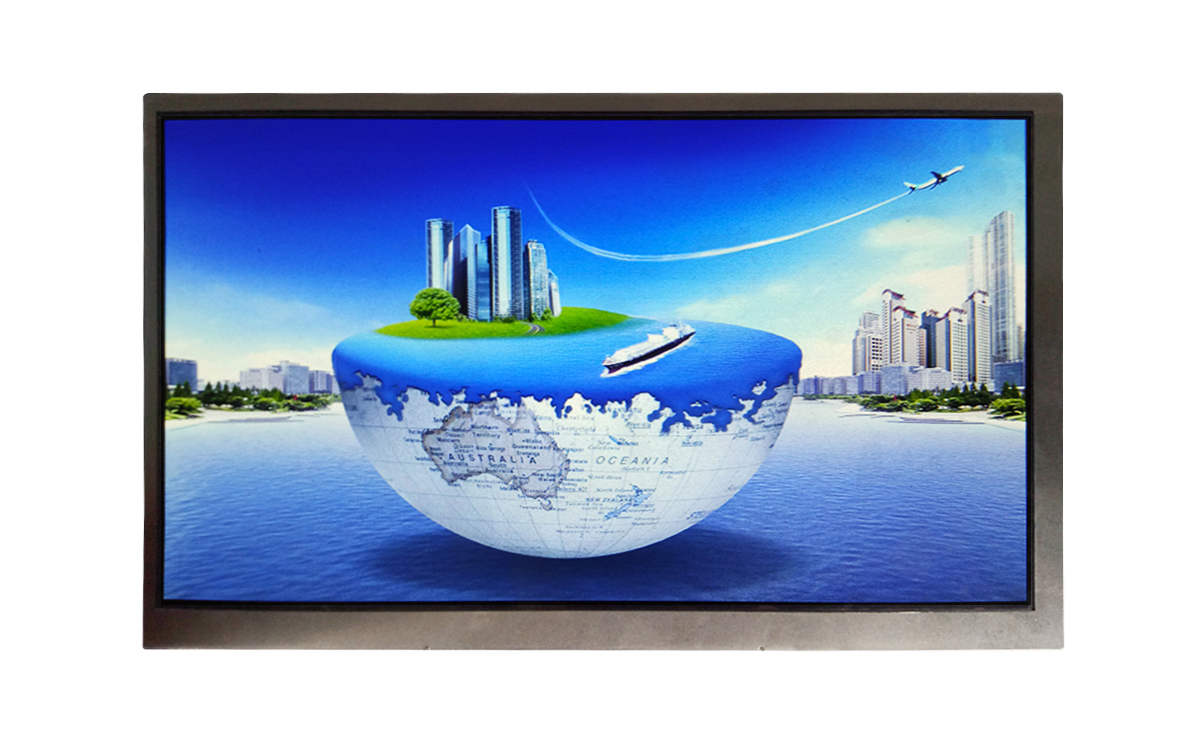

7" TFT Display (TFT-0126-CT)
This 7" TFT display is fitted with a 5-point capacitive touchscreen and has an extended backlight half-life of 50K hours.
It features an RGB interface for easy implementation and can be assembled into a high quality, complete HMI with a custom cover lens.
Display Features
- Size: 5" - 9"
- Type: TN TFT
- Feature: Industrial Backlight
- Feature: Integrated Touchscreen
Display Specs
| Part Number | TFT-0126-CT |
| Display Type | TN TFT |
| Screen Size | 7" |
| Resolution | 800 x 480 |
| Shape | Standard |
| Aspect Ratio | 5:3 |
| Viewing Angle | 12 o'clock |
| Brightness | 350 cd/M² |
| Backlight Half-Life | 50K Hours |
| Contrast Ratio | 500:1 |
| Interface | RGB |
| Connection | ZIF |
| Operating Temperature Range | -20°C to 70°C |
| Dimensions (W x H x D) | 164.9 x 100 x 5 mm |
| Active Area (W x H) | 154.1 x 85.9 mm |
