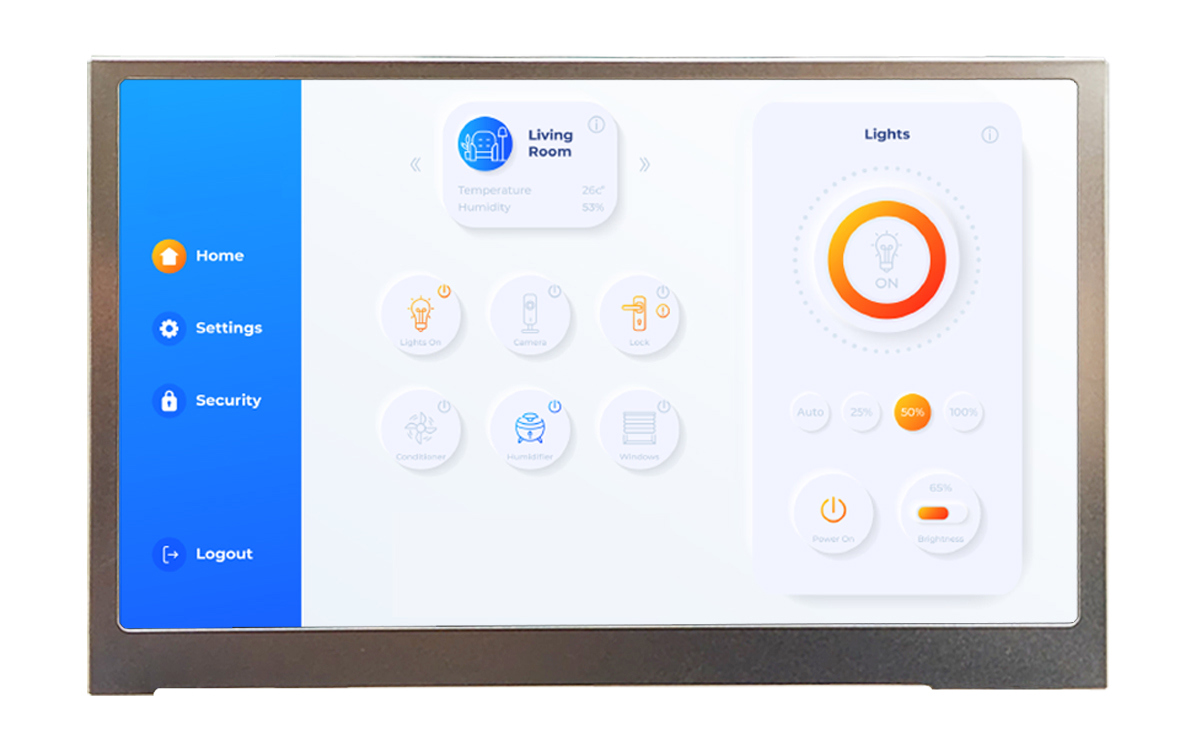

7" TFT Display (TFT070A111R)
This 7" TFT has a built-in MCU and offers a simple upgrade path from mono graphic displays to full colour TFTs.
The MCU (Micro-Control Unit) provides a 16-bit interface, which allows for easy integration with the end-application PCB and is ideal for OEMs with limited in-house software engineering experience.
The TN panel delivers an 800 x 480 px resolution and is polarised for a 12 o'clock viewing angle.
Display Specs
| Part Number | TFT070A111R |
| Display Type | TN TFT |
| Screen Size | 7" |
| Resolution | 800 x 480 |
| Shape | Standard |
| Aspect Ratio | 5:3 |
| Viewing Angle | 12 o'clock |
| Brightness | 450 cd/M² |
| Backlight Half-Life | 20K Hours |
| Contrast Ratio | 500:1 |
| Interface | MCU |
| Connection | ZIF |
| Operating Temperature Range | -20°C to 70°C |
| Dimensions (W x H x D) | 164.9 x 100 x 4.7 mm |
| Active Area (W x H) | 153.8 x 85.6 mm |
