Miniature RF Cable Assemblies

Supporting a maximum frequency of 10 Ghz, miniature RF & microwave cable assemblies are typically used in applications for communications and broadcast.

Get in touch Looking for an RF cable solution? Get in touch

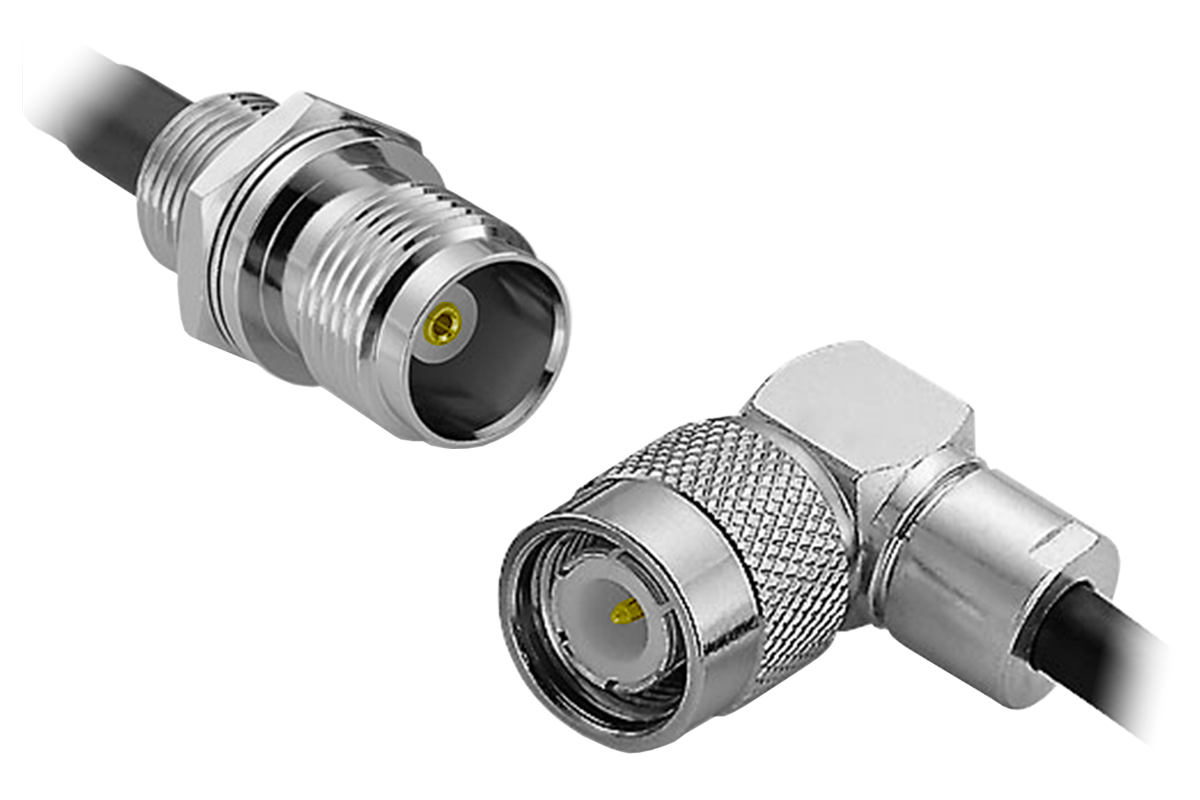

TNC Series Cable Assemblies

The TNC series has similar physical dimensions to the BNC series, but the extremely reliable screw coupling affords it extra protection against shock and vibration. It offers:

  • 10 GHz maximum frequency for 50 Ω impedance
  • GHz maximum frequency for 75 Ω impedance
  • Screw coupling, threaded version of BNC
  • Available in 50 or 75 Ω impedance
  • Also available in reverse polarity variants

Spec sheet TNC series spec sheet

TNC Series Cable Assemblies

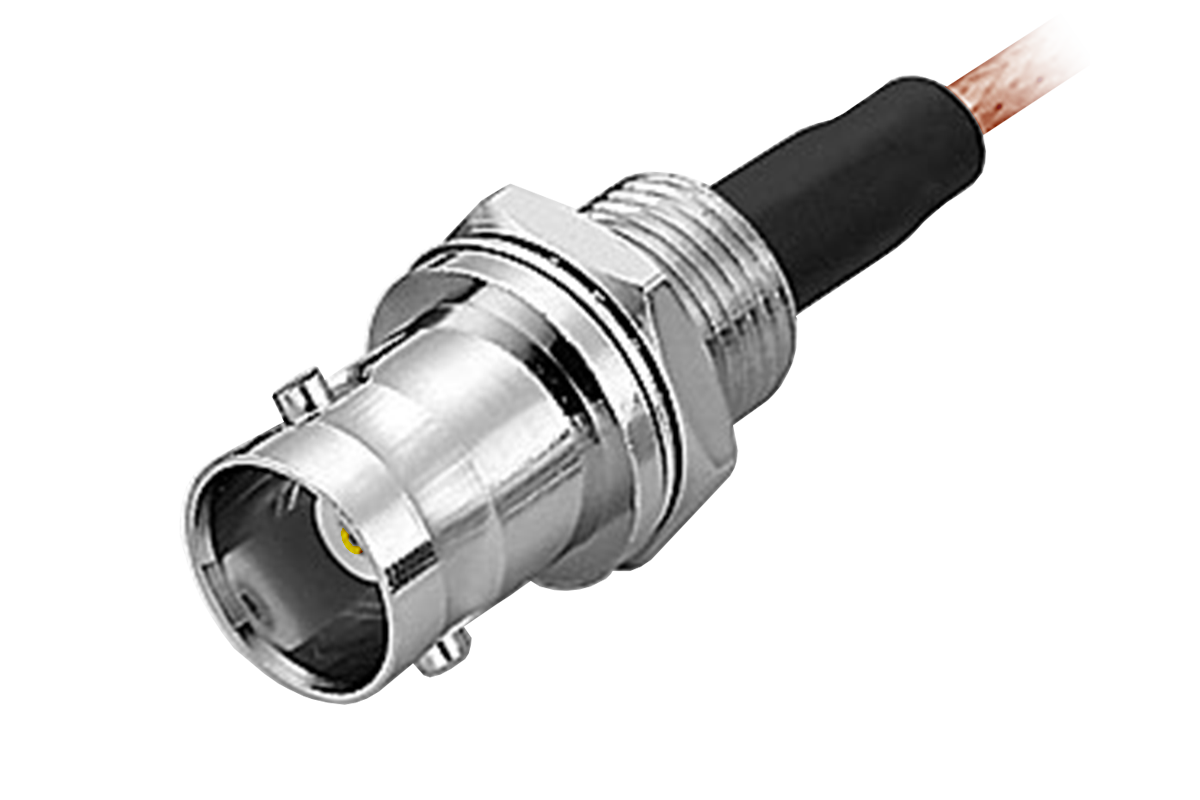

BNC Series Cable Assemblies

The BNC series is identified by its 2-pronged bayonet coupling, and is one of the more popular coaxial connectors as it is suitable for a wide range of applications. It offers:

  • 4 GHz maximum frequency for 50 Ω impedance
  • 1 GHz maximum frequency for 75 Ω impedance
  • Bayonet coupling, bayonet version of TNC
  • Available in 50 Ω or 75 Ω impedance
  • Also available in reverse-polarity variants

Spec sheet BNC series spec sheet

BNC Series Cable Assemblies
